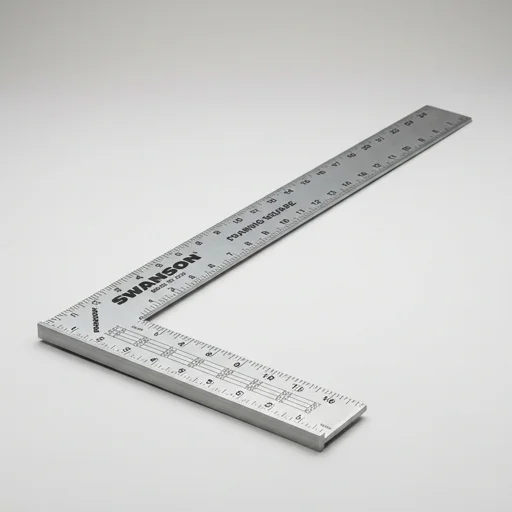

Swanson Framing Square
The Swanson Framing Square is a reliable, no-frills tool that delivers accurate angle and rafter...
Specifications
- Durable aluminum alloy construction for lightweight strength
- Etched rafter tables for common, hip, valley, and jack rafters
- Precision-stamped markings for accurate angle and length readings
- Built-in Speed Square-style layout for quick 45° and 90° marking
- Corrosion-resistant finish suitable for jobsite conditions
Pros
- ✓ Lightweight yet sturdy for all-day use
- ✓ Clear, easy-to-read rafter and angle tables
- ✓ Versatile for framing, roofing, and general layout tasks
- ✓ Durable finish resists rust and wear
- ✓ Affordable compared to premium competitors
Cons
- ✕ Etched markings can fade with heavy abrasive use
- ✕ Not ideal for very large layout tasks compared to a full carpenter's square
- ✕ Aluminum edges can bend if dropped or misused
- ✕ Table print is small for users with poor eyesight
Swanson
Swanson Framing Square
- Compared against 60 tools in this category
- Verdict-backed pick, not a guess
- Real-world testing notes included
Opens retailer in a new tab
We earn a small commission on qualifying purchases via AliExpress affiliate links — at no extra cost to you.
The Swanson framing square is a staple layout tool for carpenters, framers, and serious DIYers who need dependable accuracy on the job site. Manufactured from durable aluminum, this L-shaped square typically measures 24 inches along the body and 16 inches along the tongue, giving users a wide, stable reference edge for marking rafters, stairs, and other framing components. The rigid, one-piece construction resists bending and warping even under repeated use, while the etched markings remain legible despite exposure to sawdust, moisture, and rough handling. Its blue or silver finish, depending on the model, is treated to reduce glare, making it easier to read numbers accurately even under bright work lights or direct sunlight. What sets the Swanson framing square apart is the wealth of printed information etched directly onto its surface, transforming a simple square into a portable reference guide. Users can find rafter tables, brace measurements, and octagon scales printed right on the tool, eliminating the need to consult separate charts or apps when calculating angles for roof pitches or stair stringers. The square also includes a Essex board foot table, which is particularly useful for estimating lumber quantities without additional calculations. These features make it especially valuable for framing crews who need to move quickly without sacrificing precision, since the square essentially functions as a built-in calculator for many common on-site measurements. Beyond its core layout functions, the Swanson framing square is designed with practical usability in mind, featuring pre-drilled holes that allow it to be hung on a tool belt, pegboard, or fastened to a fence for use as a saw guide. The corners are typically finished to prevent snagging on clothing or gloves, and the overall weight is balanced so it can be maneuvered with one hand while marking lines with the other. Whether used to check that a wall is square, to lay out common and hip rafters, or to guide a circular saw for straight crosscuts, this tool remains relevant across a wide range of construction and woodworking tasks. Its combination of rugged build quality, comprehensive printed reference data, and straightforward design has made it a long-trusted choice among professionals and hobbyists who need consistent, accurate results in framing and general carpentry work.
Customer reviews
I've used this square daily on job sites for six months now. The rafter tables are a huge time-saver, and it hasn't warped or bent despite regular use.
Bought this for a home renovation project. It's accurate and easy to use, though the etched numbers are starting to wear down slightly after heavy use.
Used it to calculate rafter angles for a shed roof. The instructions on the square itself made it easy even as a first-timer.
Good balance of durability and weight. I appreciate that it doesn't feel bulky in my tool belt, though I wish the printed tables were a bit bigger.
